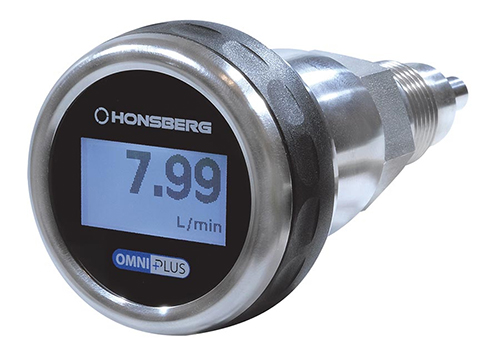

Calorimetric/thermal Flow meter เครื่องวัดอัตราการไหลแบบเจาะข้างท่อ รุ่น OMNIPLUS-F
Specifications:
| measuring principle: | calorimetric/thermal |
| measurement media: |
liquids media configurable on the device |
| measuring range: |
flow: 2 cm/s to 300 cm/s temperature: -20°C to +120°C |
| measurement uncertainty: |
flow: ±(7 % measurement + 2 % FS) temperature: ±2°C (flow speed >2 cm/s) |
| response time: |
in water (25°C) at an average flow speed of approx. 1-2 s |
| operating pressure: |
connection type 008, 015: PN100 (PN200 upon request) connection type 013, 018: up to PN100 (depending on T-piece) connection type 012: up to PN40 (depending on assembly material) |
| temperature of medium: | -20°C to +120°C |
| ambient temperature: | -20°C to +70°C |
| storage temperature: | -30°C to +80°C |
| materials in contact with medium: |
stainless steel 1.4571 Fluororubber (O-ring for connection type 013) |
| materials not in contact with medium: |
housing: stainless steel 1.4305 glass: mineral glass hardened magnet: NeFeB ring: POM |
| supply voltage: | 18 V DC to 30 V DC |
| current consumption: |
<130 mA (SIO-Mode, outputs not under load) |
|
IO-Link- specifications: |
IO-Link correction: V1.1 bit rate: COM2 (38400 Bit/s) minimum cycle time: 4 ms SIO mode: yes port class: A compatible block parameterisation: yes data storage: yes |
| analog output: |
applicable for flow or temperature output type configurable on the device: current: 4 to 20 mA / 0 to 20 mA voltage: 0 to 10 V / 2 to 10 V / 0 to 5 V / 1 to 5 V / 0.5 to 4.5 V |
| switching outputs: |
2 push-pull transistor outputs, parameterisable as NPN o.C. resistant to short circuits and polarity reversal Iout = 100 mA max. per output configurable on the device as: ● limit switch ● frequency output ● pulse output ● signal output for preset counter |
| signal input: |
reset input for volume meter (alternative to switching output at Pin 5) |
| display: |
graphic 1.2 inch LCD (transflective) 128 x 64 Pixel White background illumination, red on alarm notification |
| electr. connection: | round plug connector M12x1 / 5-pole |
| ingress protection: | IP 67 |
| weight: | approx. 0.30 kg |
| conformity: | CE |
