W-Sonic Technology |
|

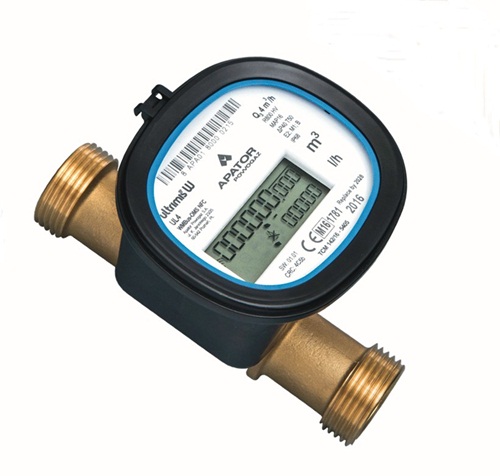

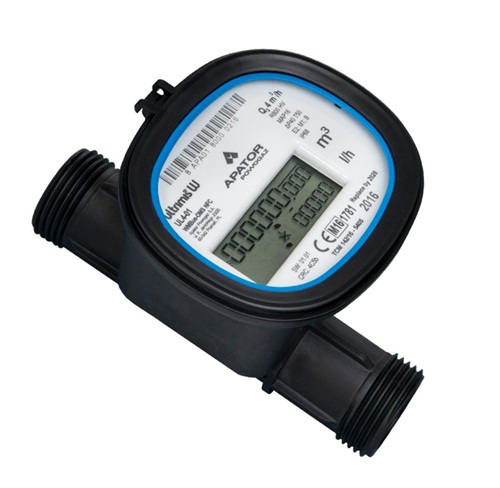

The Ultrimis W meter features a measurement method based on a unique ultrasonic beam path (W-Sonic) through the measurement chamber, ensuring indicator stability across the entire measurement range. The distinctive characteristics of this technology are:
- The ability to design a water meter of a considerably shorter length than with other ultrasonic beam paths
- No covers in the flow sectional view
- No impact of impurities on the measurement
- The use of an e-system to monitor the ultrasonic beam parameters, hence compensating for ageing of the piezo elements
- No need to use additional equipment for the water meter, such as a strainer or check valve
Basic technical data :
| Type* |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Weight [kg] |
|
|---|---|---|---|---|---|
| Cold water meters | |||||
| UL 2,5 Ultrimis W |
To R800 |
2,5 | 15 | 80; 110; 115; 165; | 0,48 - 0,6 |
| UL 2,5-01 Ultrimis W | 80; 110 | 0,29; 0,31 | |||
| UL 4 Ultrimis W | 4 | 20 | 105; 115; 130; 190 | 0,61 - 0,77 | |
| UL 4-0,1 Ultrimis W | 105; 130 | 0,33; 0,34; | |||
| UL 6,3 Ultrimis W | 6,3 | 25 | 165; 260; | 1,05; 1,39 | |
| UL 10 Ultrimis W | 10 | 32 | 260 | 1,68 | |
| UL 16 Ultrimis W | 16 | 40 | 300 |
2,15 |
|
