Water Meter วัดปริมาณการใช้น้ำ
>>
แบบกลไกเคลื่อนไหวใช้ไฟฟ้า
[1]
>>
4

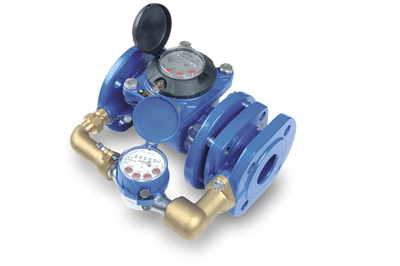

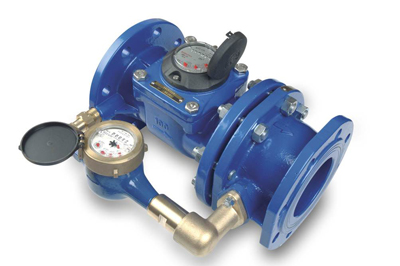

COMPOUND WATER METERS WITH THE SPRING VALVE รุ่น MWN /JS-S, MWN/WS-S, MWN/JM-S, MWN/WM-S
Basic technical data
| Type |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection |
|---|---|---|---|---|
| MWN / SIDE WATER METER TYPE JS – vane-wheel single-jet dry water meters | ||||
| MWN/JS 50/4,0-S | 25 | 50 | 270 / 300** | flange*** |
| MWN/JS 50/4,0-S-XX* | 25 | 50 | 270 / 300** | flange*** |
| MWN/JS 65/4,0-S | 40 | 65 | 300 | flange*** |
| MWN/JS 65/4,0-S-XX* | 40 | 65 | 300 | flange*** |
| MWN/JS 80/4,0-S | 63 | 80 | 300 / 350** | flange*** |
| MWN/JS 80/4,0-S-XX* | 63 | 80 | 300 / 350** | flange*** |
| MWN/JS 100/4,0-S | 100 | 100 | 360 / 350** | flange*** |
| MWN/JS 100/4,0-S-XX* | 100 | 100 | 360 / 350** | flange*** |
| MWN/JS 150/16-S | 250 | 150 | 500 ± 15 | flange*** |
| MWN/JS 150/16-S-XX* | 250 | 150 | 500 ± 15 | flange*** |
| MWN / SIDE WATER METER TYPE WS – vane-wheel multi-jet dry water meters | ||||
| MWN/WS 50/4,0-S | 25 | 50 | 270 / 300** | flange*** |
| MWN/WS 50/4,0-S-XX* | 25 | 50 | 270 / 300** | flange*** |
| MWN/WS 65/4,0-S | 40 | 65 | 300 | flange*** |
| MWN/WS 65/4,0-S-XX* | 40 | 65 | 300 | flange*** |
| MWN/WS 80/4,0-S | 63 | 80 | 300 / 350** | flange*** |
| MWN/WS 80/4,0-S-XX* | 63 | 80 | 300 / 350** | flange*** |
| MWN/WS 100/4,0-S | 100 | 100 | 360 / 350** | flange*** |
| MWN/WS 100/4,0-S-XX* | 100 | 100 | 360 / 350** | flange*** |
| MWN/WS 150/16-S | 250 | 150 | 500 ± 15 | flange*** |
| MWN/WS 150/16-S-XX* | 250 | 150 | 500 ± 15 | flange*** |
| MWN / SIDE WATER METER TYPE JM – vane-wheel single-jet wet water meters | ||||
| MWN/JM 50/4,0-S | 25 | 50 | 270 / 300** | flange*** |
| MWN/JM 65/4,0-S | 40 | 65 | 300 | flange*** |
| MWN/JM 80/4,0-S | 63 | 80 | 300 / 350** | flange*** |
| MWN/JM 100/4,0-S | 100 | 100 | 360 / 350** | flange*** |
| MWN / SIDE WATER METER TYPE WM – vane-wheel multi-jet wet water meters | ||||
| MWN/WM-NKP 50/4,0-S | 25 | 50 | 270 / 300** | flange*** |
| MWN/WM-NKP 50/4,0-S-XX* | 25 | 50 | 270 / 300** | flange*** |
| MWN/WM-NKP 65/4,0-S | 40 | 65 | 300 | flange*** |
| MWN/WM-NKP 65/4,0-S-XX* | 40 | 65 | 300 | flange*** |
| MWN/WM-NKP 80/4,0-S | 63 | 80 | 300 / 350** | flange*** |
| MWN/WM-NKP 80/4,0-S-XX* | 63 | 80 | 300 / 350** | flange*** |
| MWN/WM-NKP 100/4,0-S | 100 | 100 | 360 / 350** | flange*** |
| MWN/WM-NKP 100/4,0-S-XX* | 100 | 100 | 360 / 350** | flange*** |
| MWN/WM-NKP 150/16-S | 250 | 150 | 500 ± 15 | flange*** |
| MWN/WM-NKP 150/16-S-XX* | 250 | 150 | 500 ± 15 | flange*** |
