Water Meter วัดปริมาณการใช้น้ำ
>>
แบบกลไกเคลื่อนไหวไม่ใช้ไฟฟ้า
[2]
>>
4

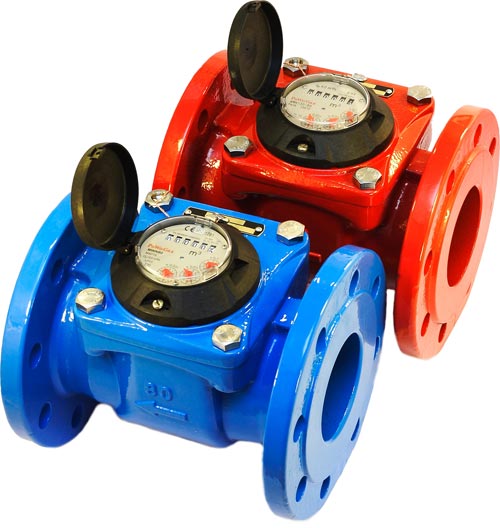

PROPELLER WATER METERS รุ่น MWN
Basic technical data
| Type |
Q3 [m3/h] |
DN [mm] |
Length [mm] |
Connection |
|---|---|---|---|---|
| WATER METERS for cold water | ||||
| MWN 40-XX* Nubis | 25 | 40 | 200 | flange*** |
| MWN 50-XX* Nubis | 40 | 50 | 200 | flange*** |
| MWN 50-G-XX* Nubis | 40 | 50 | 200 | G2½ |
| MWN 65-XX* Nubis | 63 | 65 | 200 | flange*** |
| MWN 80-XX* Nubis | 100 | 80 | 225 / 200 ** | flange*** |
| MWN 100-XX* Nubis | 160 | 100 | 250 | flange*** |
| MWN 125-XX* Nubis | 250 | 125 | 250 | flange*** |
| MWN 150-XX* Nubis | 400 | 150 | 300 | flange*** |
| MWN 200-XX* Nubis | 630 | 200 | 350 | flange*** |
| MWN 250-XX* Nubis | 1000 | 250 | 450 | flange*** |
| MWN 300-XX* Nubis | 1600 | 300 | 500 | flange*** |
| MWN 400-XX* Nubis | 1000 (Qn) | 400 | 600 | flange*** |
| MWN 500-XX* Nubis | 1500 (Qn) | 500 | 800 | flange*** |
| WATER METERS for hot water | ||||
| MWN130 40-XX* Nubis | 25 | 40 | 200 | flange*** |
| MWN130 50-XX* Nubis | 25 | 50 | 200 | flange*** |
| MWN130 50-G-XX* Nubis | 25 | 50 | 200 | G2½ |
| MWN130 65-XX* Nubis | 40 | 65 | 200 | flange*** |
| MWN130 80-XX* Nubis | 63 | 80 | 200** / 225 | flange*** |
| MWN130 100-XX* Nubis | 100 | 100 | 250 | flange*** |
| MWN130 125-XX* Nubis | 160 | 125 | 250 | flange*** |
| MWN130 150-XX* Nubis | 250 | 150 | 300 | flange*** |
| MWN130 200-XX* Nubis | 400 | 200 | 350 | flange*** |
| MWN130 250-XX* Nubis | 630 | 250 | 450 | flange*** |
| MWN130 300-XX* Nubis | 1000 | 300 | 500 | flange*** |
